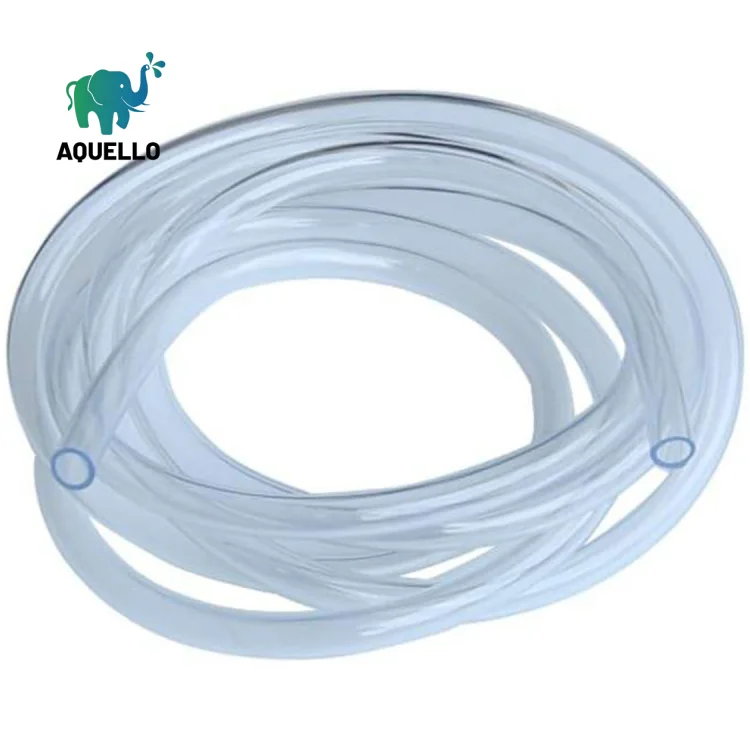

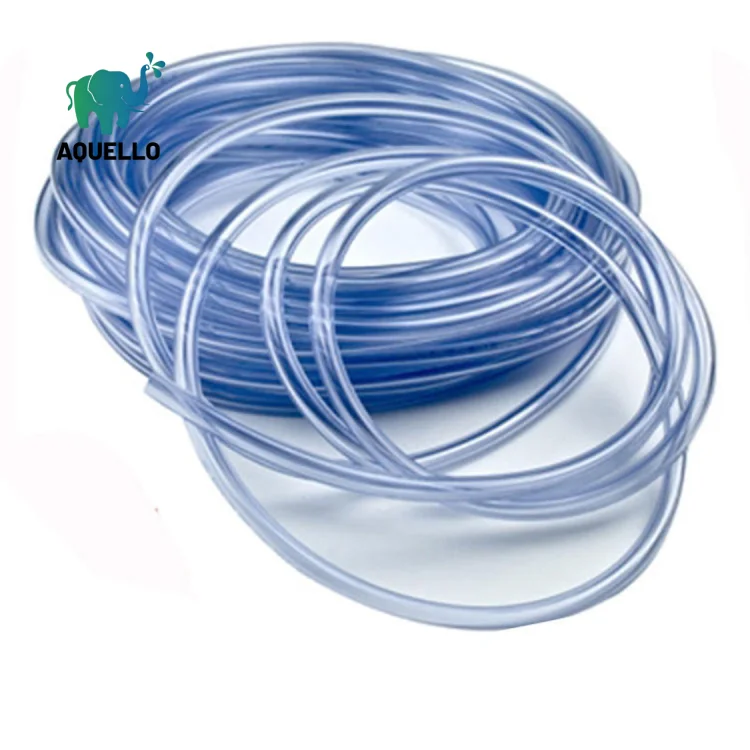

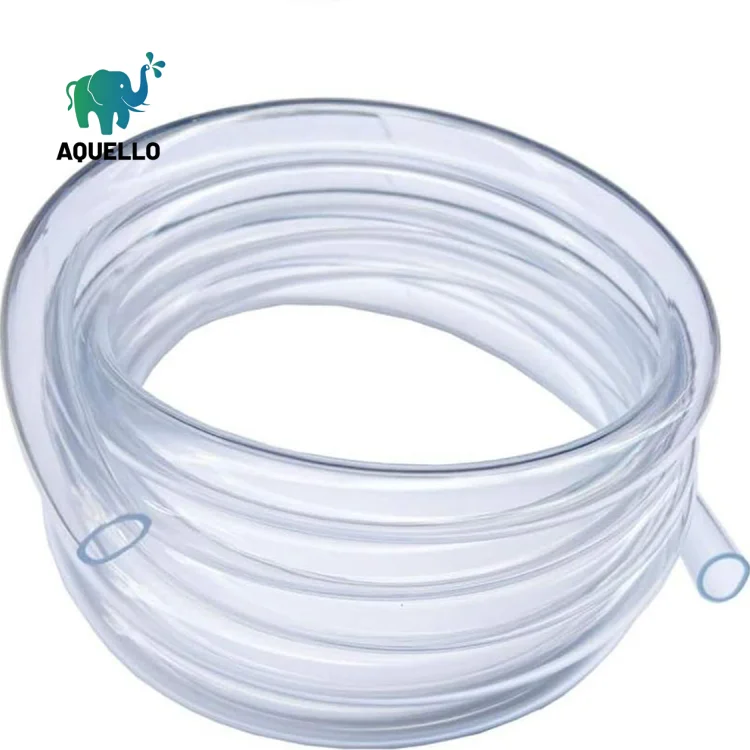

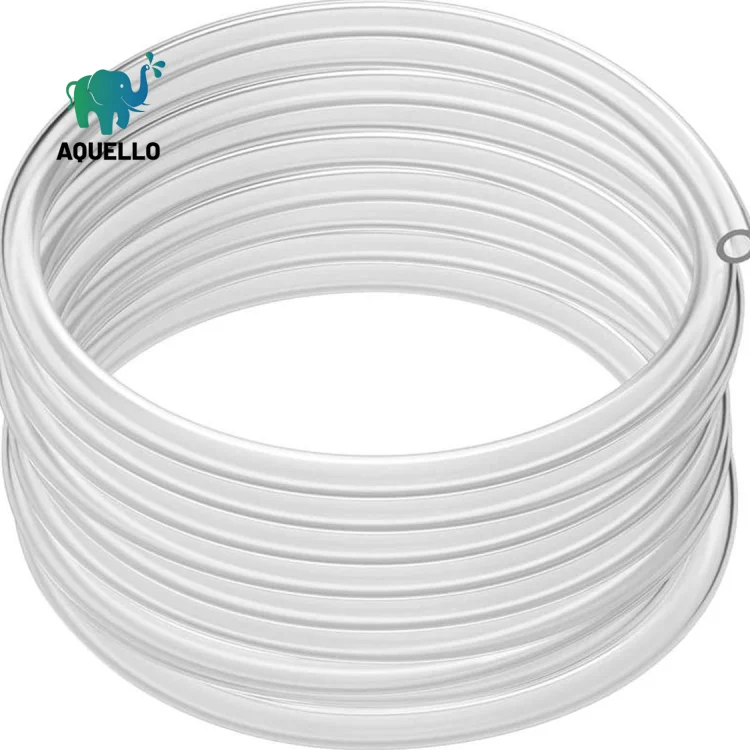

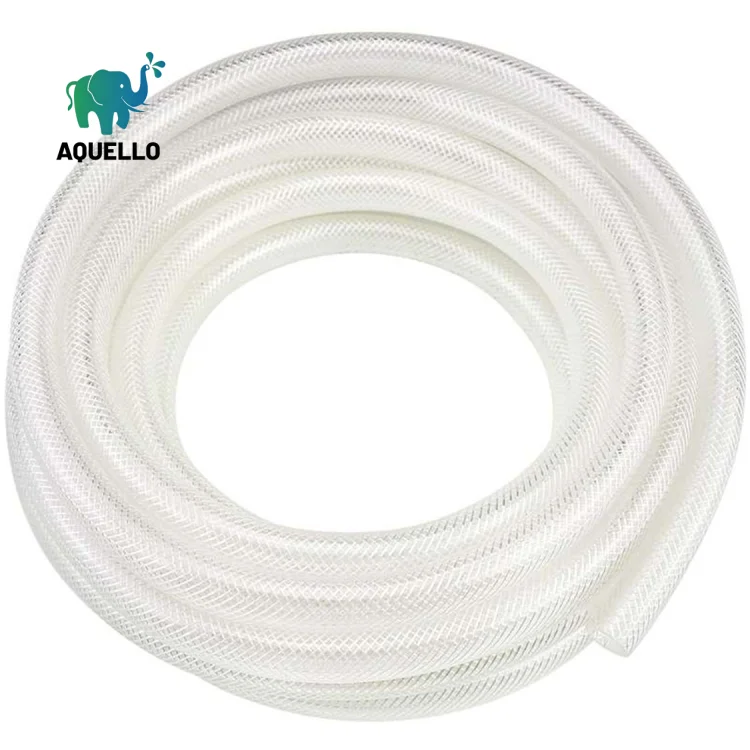

Flexible Transparent PVC Hose
Clear PVC Hose , transparent hose pipe always conveying many liquids and gases. Also used as suds pipes and protection of metal tubes, wooden dowelling, and yacht rigging. Clear PVC hose makes it easier to view the liquid inside the tubes, which can prevent kinks and the incorrect transfer of liquids through certain lines. Suitable for food, medical and contact applications.Clear PVC hose piping provides a versatile, cost-effective alternative for many piping applications, particularly those where visual monitoring is critical. Alias: Flexible Clear PVC Hoses, Flexible Transparent PVC Tubing, Clear PVC plastic tubing, Clear Vinyl PVC tubing, Transparent pipeline, clear flexible tubing. A clear PVC hose is a type of hose made from transparent PVC (polyvinyl chloride) material. It is designed to provide visibility and easy monitoring of the contents or flow passing through the hose. The clear nature of the hose allows users to visually inspect and track the movement of liquids, gases, or other materials.
Product Details
Clear Vinyl Tubing manufactured with non-toxic material. Can be used for flexible lines for low-pressure air, water, liquids, beverages, chemicals, and gases as well as drain lines for air conditioners and dehumidifiers. Excellent resistance to mild acids and chemicals. See-through design allows for visual flow. Not for use with ice makers or petroleum-based products. Clear vinyl tubing is a type of tubing made from transparent PVC (polyvinyl chloride) material. It is commonly used for a wide range of applications where visibility of the contents or flow is important. The clear nature of the tubing allows for easy monitoring and inspection of liquids or materials passing through it.
· Tube: Very Flexible And Smooth Transparent Plasticized PVC.
· Reinforcement: Without Textile.
· Cover: Abrasion, Ozone, And Weather Resistant Transparent PVC.
· Application: Drain lines. Light vacuum lines. Sight gauges. Low-pressure air and water.
· Temp. Range. : - 5 ̊C to +60 ̊C (23°F to 140°F)
Features
· Crystal clear transparency
· Excellent flexibility
· Non-toxic grade available
· Custom ID/OD combinations
· Sold by meter or coil
Applications
· Aquariums
· Laboratory tubing
· Food dispensing
· Low-pressure water transfer
· Drainage

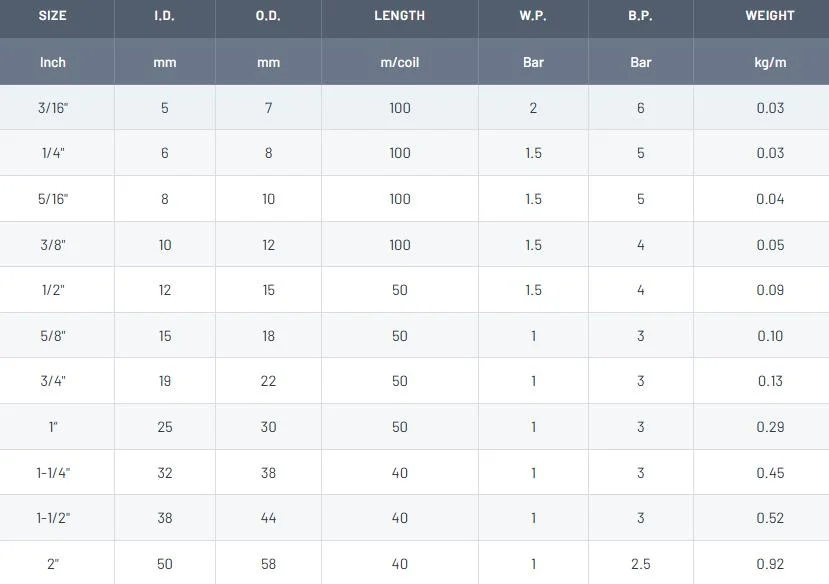

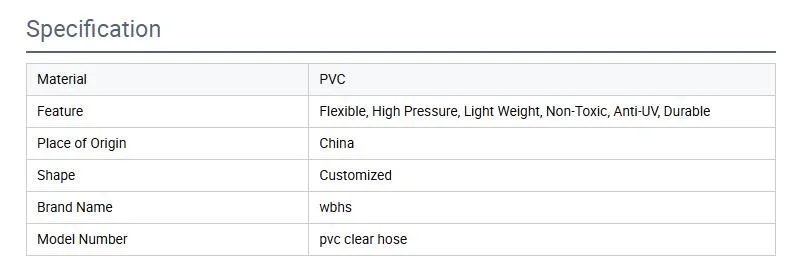

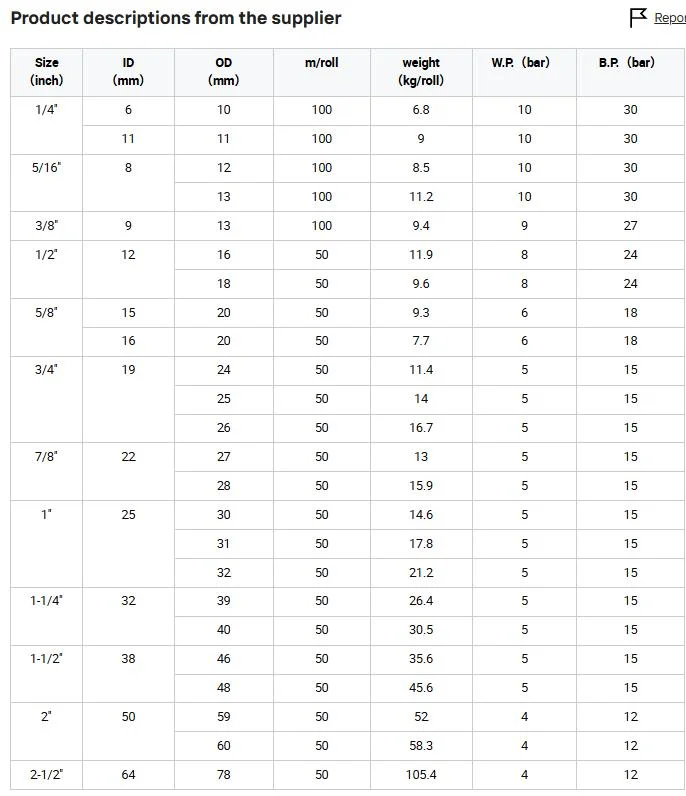

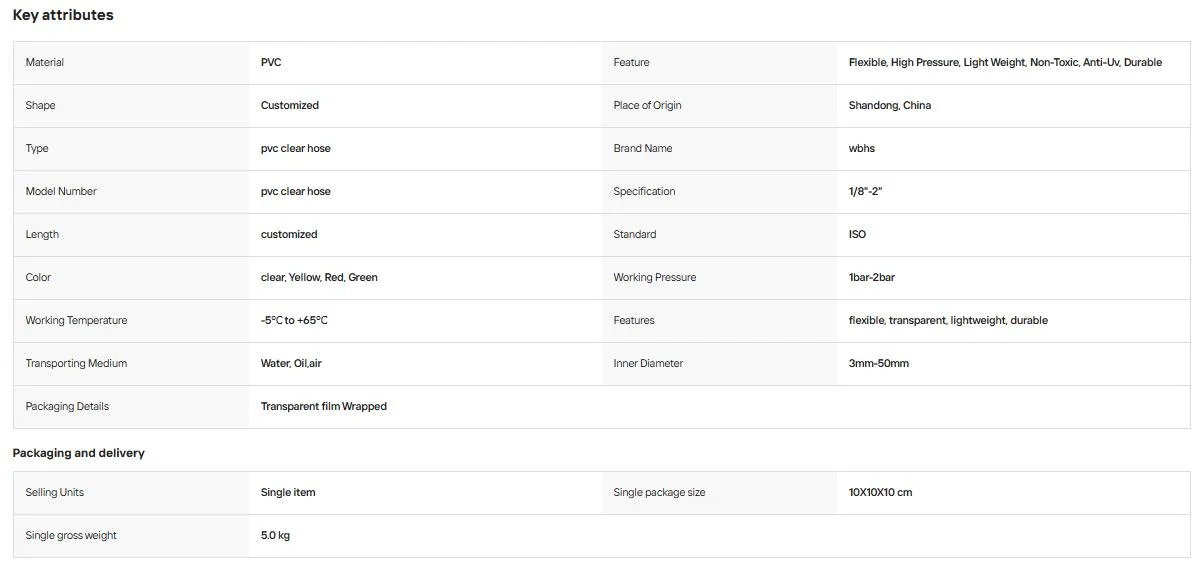

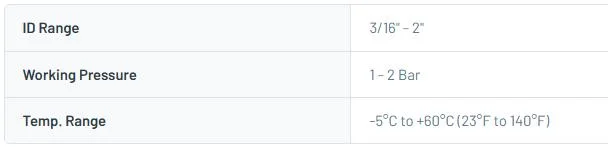

Product Parameters
-
Q : What is flexible transparent PVC hose used for?
Flexible transparent PVC hose is used wherever flow visibility is important: laboratory fluid handling, food and beverage processing, water supply systems, aquarium systems, chemical transfer monitoring, and OEM machine plumbing where technicians need to observe fluid condition.
-
Q : What is the pressure rating?
Pressure rating ranges from 40 to 150 PSI (3–10 bar) depending on wall thickness and inner diameter. Both pressure and low-vacuum applications are supported.
-
Q : Is the PVC compound food-safe?
Food-grade versions manufactured with non-toxic, FDA/REACH-compliant PVC compound are available. Please specify food-grade requirement when ordering.
-
Q : Does the hose discolor over time?
Prolonged exposure to UV light and certain chemicals can cause yellowing. Sunhose uses high-clarity, UV-stabilized PVC to minimize this. Store the hose away from direct sunlight when not in use.
-
Q : What sizes are available?
Available in inner diameters from 3 mm to 50 mm (1/8 inch to 2 inches). Very small diameters for laboratory and OEM machine use are available, as are larger sizes for industrial water systems.
-
Q : Can it be used with compressed air?
Yes, for compressed air up to the rated working pressure. However, for permanent compressed air installations, a reinforced clear PVC hose or rigid tubing is recommended for safety.
-
Q : What is the minimum order quantity?
Standard MOQ is 1,000 meters. Small diameter laboratory hose is typically sold on 25 m or 50 m reels.
