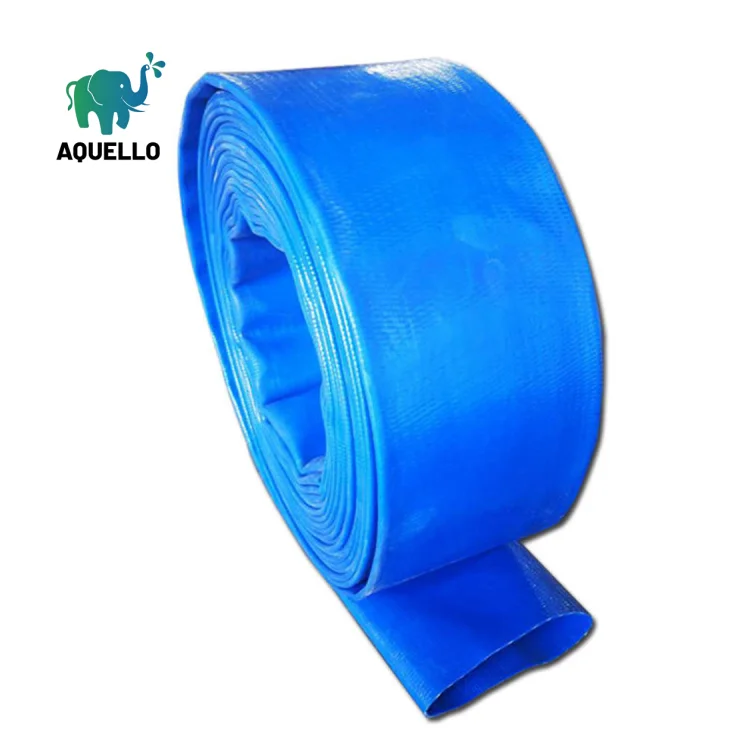

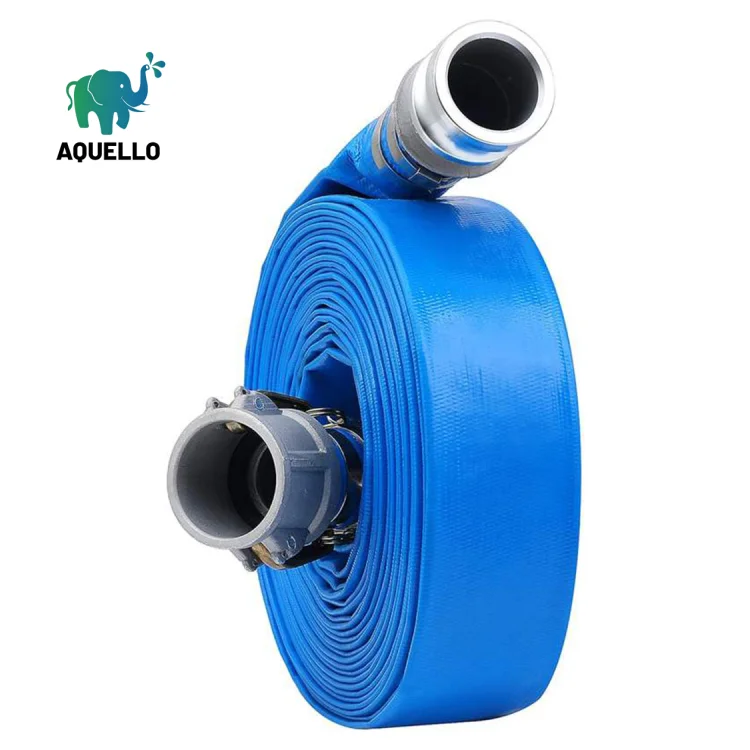

PVC Layflat Hose

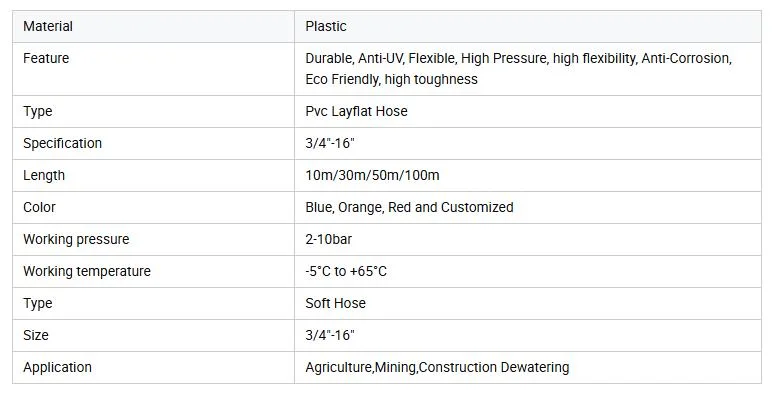

Product Details

· Tube: Flexible PVC Lining.

· Reinforcement: High Tensile Synthetic Textile.

· Cover: Light Chemicals And Weather Resistant PVC Outer Cover.

· Application: For Light Duty Discharge Of Watering Agriculture And Industry.

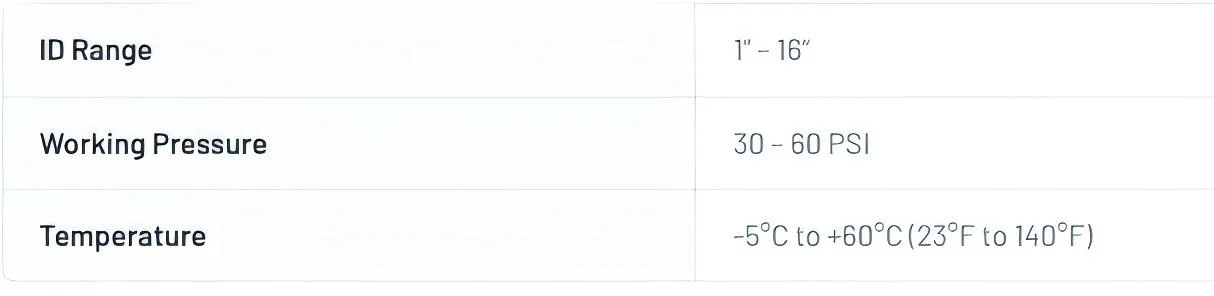

· Temp. Range. : - 5 ̊C to +60 ̊C (23°F to 140°F)

Features

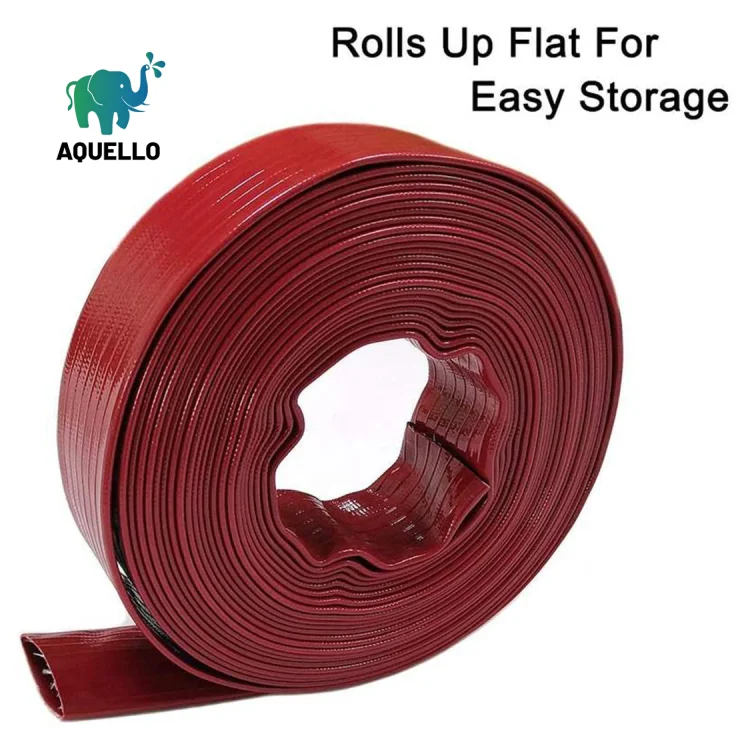

Compact flat storage

Lightweight vs. rubber

Multiple pressure ratings

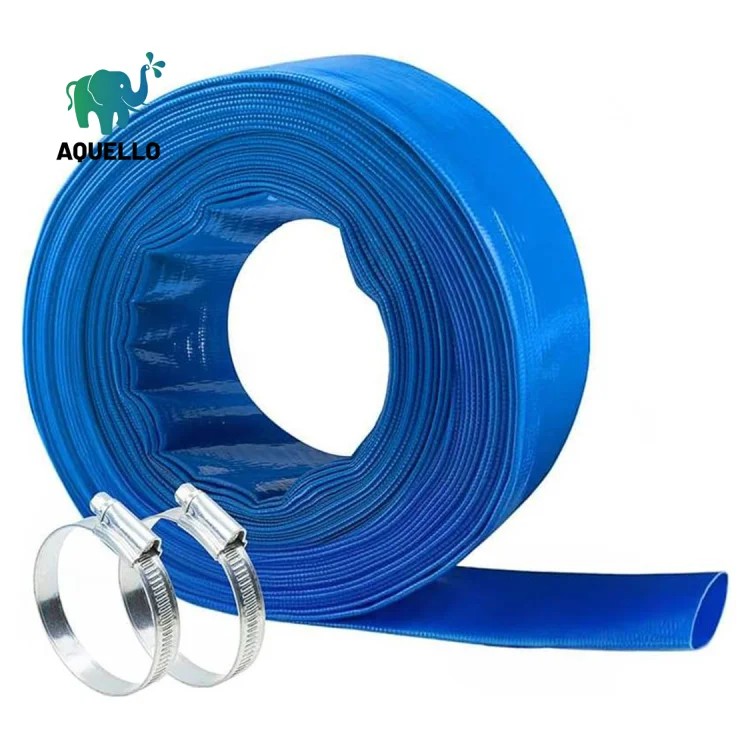

Easy coupling connection

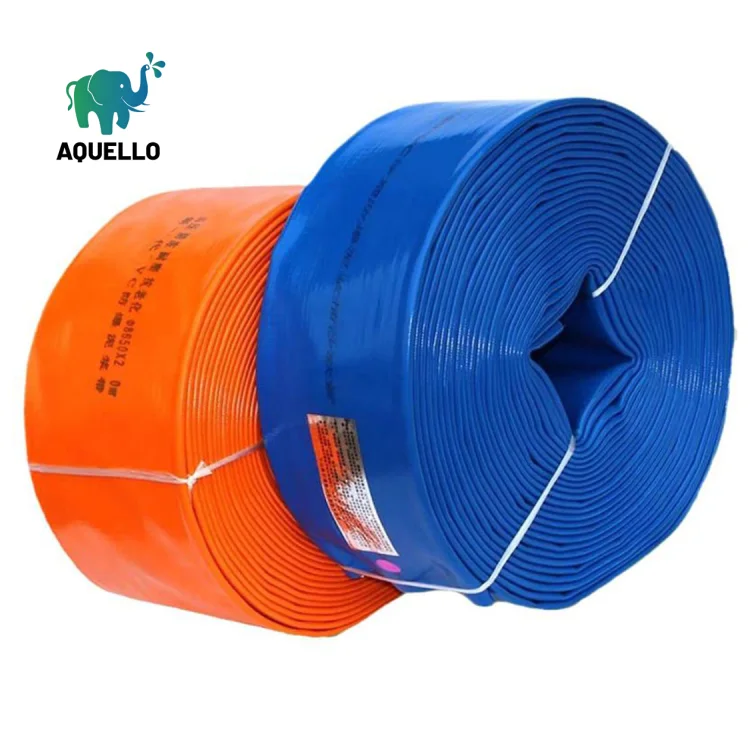

UV-stabilized PVC compound

Applications

· Agricultural irrigation

· Firefighting

· Mining

· Municipal water supply

· Construction dewatering

· Flood control

Construction & Materials

· The performance of a layflat hose comes entirely from how it is built. Each Sunhose layflat hose is manufactured with three distinct layers.

· Inner PVC lining. A smooth, flexible PVC compound that minimises friction loss and resists corrosion. The inner bore stays chemically inert when carrying clean water, irrigation water, or mild agricultural chemicals.

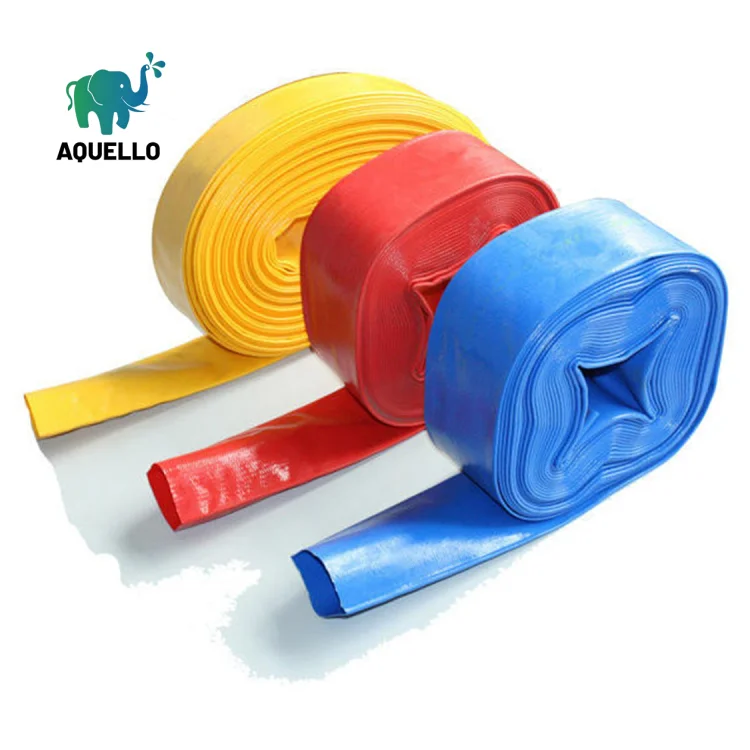

· Polyester textile reinforcement. High-tenacity polyester yarns are woven in a continuous circular pattern around the tube. This braided structure is what allows the hose to handle pressure without ballooning or twisting. The number of yarn layers determines the pressure rating — standard duty uses a single reinforcement layer, while heavy duty grades use two or more layers for working pressures up to 150 PSI.

· Outer PVC jacket. The jacket is compounded with UV stabilisers to resist sun degradation during prolonged outdoor use. It also provides abrasion resistance against concrete, gravel, and rough ground surfaces.

· This three-layer construction means the hose is significantly lighter than rubber alternatives of the same diameter while still delivering reliable pressure performance across seasons.
